10nm Tin Dioxide Powder SnO2 Nanoparticle for Battery

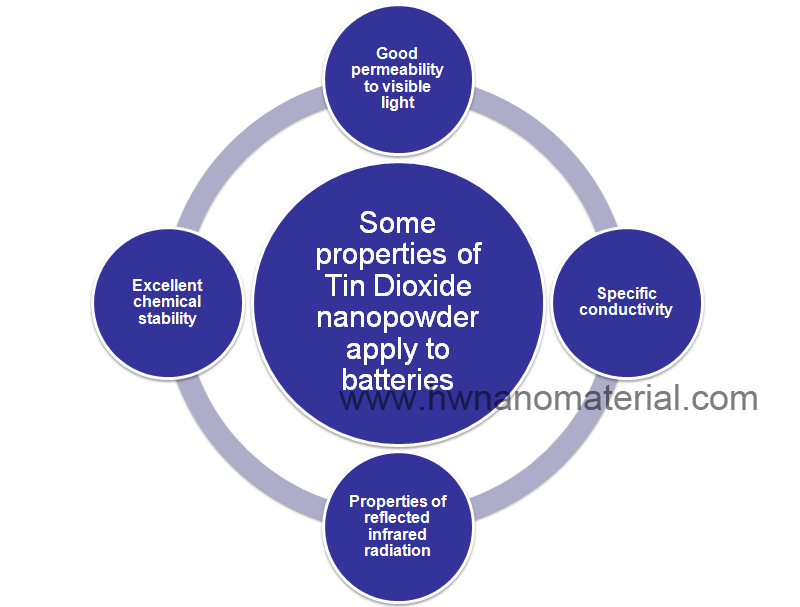

Nano Tin Dioxide material is widely used in the field of lithium batteries due to its good permeability to visible light, excellent chemical stability, and specific conductivity and infrared radiation reflection characteristics.

  • product origin:

    China
  • item no.:

    X676
  • shipping port:

    Shenzhen,Beijing
pPoduct Details

10nm Tin Dioxide Powder SnO2 Nanoparticle for Battery


Specification of Tin Dioxide(SnO2) nanopowder

Particle size of SnO2
10nm
Purity of SnO2
99.99%
SSA
20-30㎡/g
Other size
30-50nm
Related materials
Sn nanopowder, ATO nanopowders, Sn alloy nanopowders

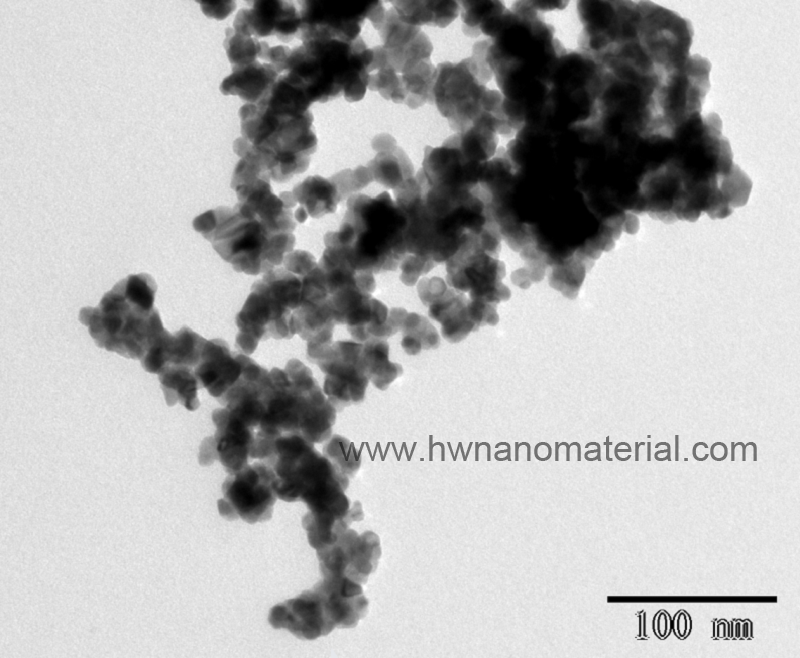

(TEM of 10nm SnO2 nano powder)


Breif introduction of Tin Dioxide(SnO2) used in battery:

As the anode material of lithium-ion battery, SnO2 has a high specific capacity, but due to the large volume expansion during the charging and discharging process, the electrode material falls off, pulverization and agglomeration, resulting in its cycle stability and poor rate performance. It has been found that changing the microscopic morphology of SnO2 materials can effectively improve their electrochemical performance and prepare nanostructures, such as nanoparticles, nanorods, nanosheets, nanospheres and other special multi-level nanostructures. Due to its large specific surface area and special morphology, it can not only provide more active sites for the reaction, shorten the lithium ion transport pathway, but also alleviate the volume expansion to a certain extent.





A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
